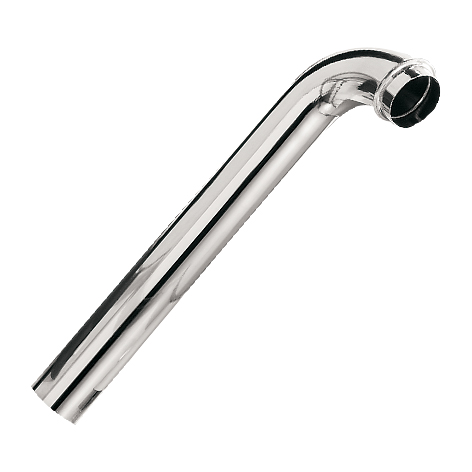

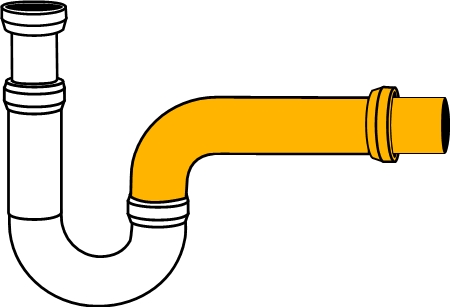

Lásrör 32x250mm - 90°

Gormur C-1
Lengd 7,5m
Breidd 8mm m/haus

Mótorloki 1" m/union 230V 8s opnun

OZXC4 tengiklemma
Klemman er á fæti
Leiðari: 2x120 - 300 mm²
Efnisgerð: Ál og eir

Pex Rör í barka
Stærð: 25x3,5mm - 50m

Griffon PE Hreinsir
Stærð: 1 L

30kg Brotvél 62J
28mm sexkant
2100w
Vagn fylgir

Dimensions and weights
Length approx.: 1500 mm
Width/depth approx.: 1450 mm
Height approx.: 2200 mm
Weight approx.: 1150 kg

Drilling/milling output
Max. size milling head: 100 mm
Max. size shaft milling cutter: 20 mm
Drilling performance steel (S235JR): 32 mm
Continuous drilling performance steel (S235JR): 28 mm

Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
Coolant pump(s) drive power: 100 W
Total rated value: 4 kW

Milling table horizontal
Table length: 1370 mm
Table width: 254 mm
Min. clearance vertical spindle - milling table: 40 mm
Max. clearance vertical spindle - milling table: 446 mm
T-groove size: 16 mm
T-groove number: 3
T-groove spacing: 63 mm
Max. load bearing capacity: 275 kg

Travel
X axis manual: 900 mm
Y axis manual: 320 mm
Z axis manual: 365 mm
X axis automatic: 800 mm
Z axis automatic: 305 mm

Vertical spindle
Reach: 200 - 680 mm
Spindle chuck: ISO 40 DIN 2080
Speed range: 9 - 6750 min¯¹
Number of gears: 8
Speed control: electronically adjustable
Vertical spindle normal operation: 3 kW
Swivel range milling cutter head Z - X plane: ± 45 °
Quill stroke: 127 mm
Spindle sleeve feed: 0,04 / 0,08 / 0,15 mm/rev

Standards and certifications
StandardDIN EN 55011
EMC levelC2

Ultra dB Rör
Stærð: DN75 x 250mm

Varnarflokkur: IP68
Stærð: M20
Gildleiki: 8-13 mm
Litur: Svartur

TVOC Skynjari 4 mtr.
