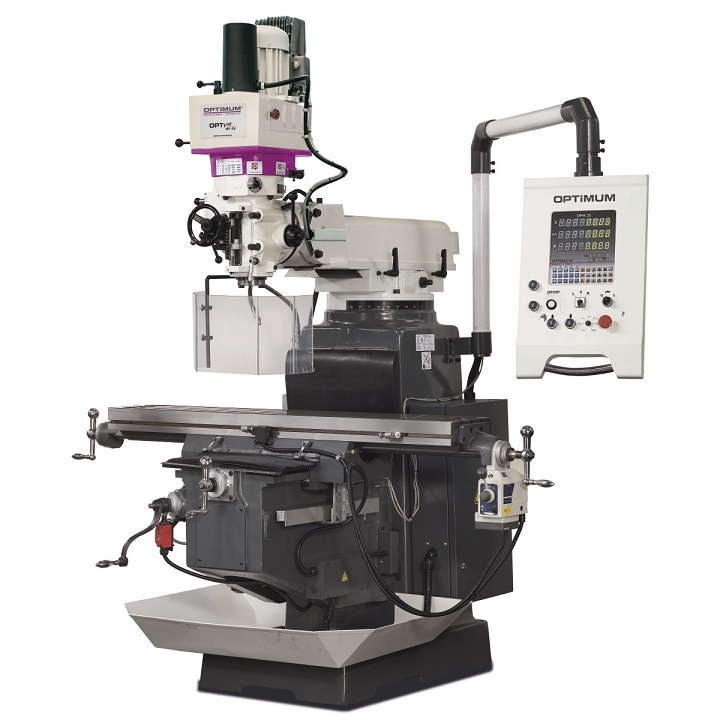

Fræsivél MF4V

FRÆSITÖNN TCT 3 mm í RA17DTækniupplýsingar:

Afl: 850/1500W/400V
Snúningshraði: 95-3200sn/mín
Borgeta í stál(S235JR): 32mm
Mesta þvermál fræs: 28mm
Spindilfærsla: 120mm
Spindill: MK4
Kverk: 275mm
Borð: 800x240mm
Burðargeta borðs: 80kg
Stærð: 1100 x 850 x 1150mm
Nettóþyngd: 320kg
Heavy, solid design made of high-quality Meehanite cast iron
Drilling frictional head inclinable ± 45 °
High concentricity due to tapered roller bearing, measured smaller than 0.01 mm in the quill
Automatic quill feed
Adjustable drilling depth stop with millimeter scale, front readable
Right / left rotation for thread cutting
X- and Z-axis with adjustable dovetail guide
Coolant system
Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user
Massive and large-dimensioned XY stage, precisely surface-finished with T-slots

Y-axis with flat guide
Large travel Y-axis of 400 mm
Motorized table height adjustment (Z-axis)

Siemens SINAMICS G110M converter
Due to compact design especially EMV contracted
Internal security features
made in EU

OPTI control panel:
Integrated control panel
Integrated digital position indicator DPA 21 with speed display
