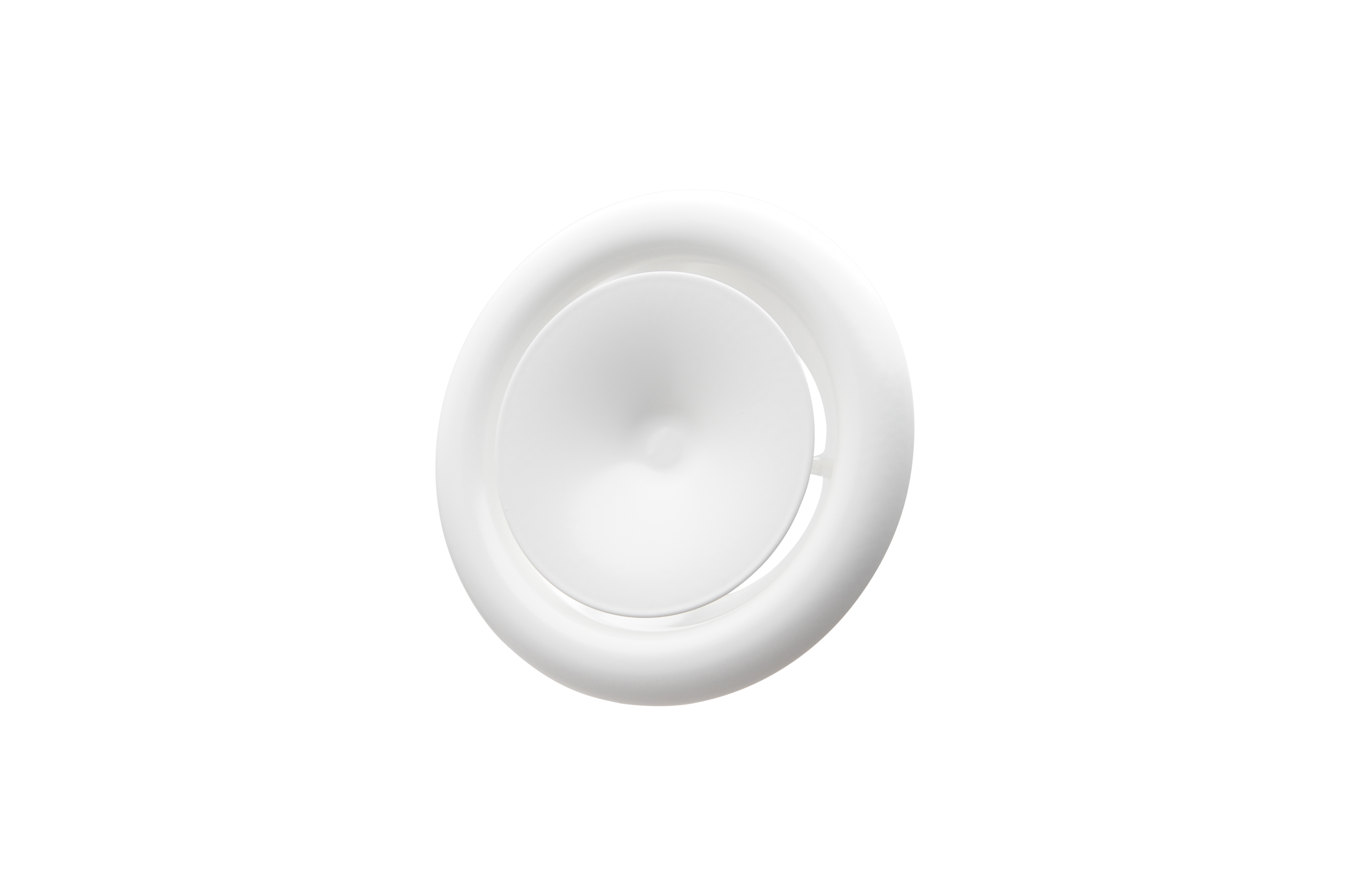

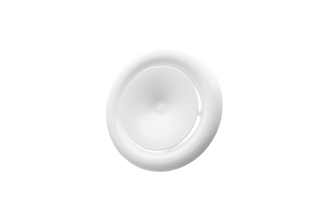

Innblástursventill DVS-P 200mm

Klettagörðum 25 - 104 Reykjavík - Sími: 5 200 800

Sækja um reikningsviðskipti

|
Nýskráning
|
Innskráning
|
English

Skoða vörur framleiðanda

Lagerstaða:

Til í birgðum

Tækniupplýsingar:

dvs_p_DATA.pdf

Aðrar upplýsingar

VEFUR FRAMLEIÐANDA

Leitarorð

Upplýsingar um vöru

Vörunúmer: 2059-200

Innblástursventill frá DEC International
Gerð: DVS-P
Þvermál: 200 mm

The DVS-P Is a supply air valve suitable for homes, offices etc.

Characteristics

quick and easy to install

very low noise level

good adjustment features

airflow is easy to measure

air flow can be changed stepless

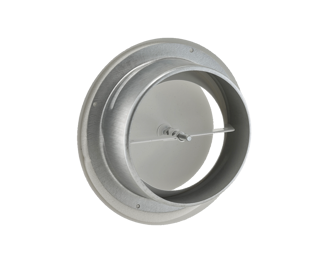

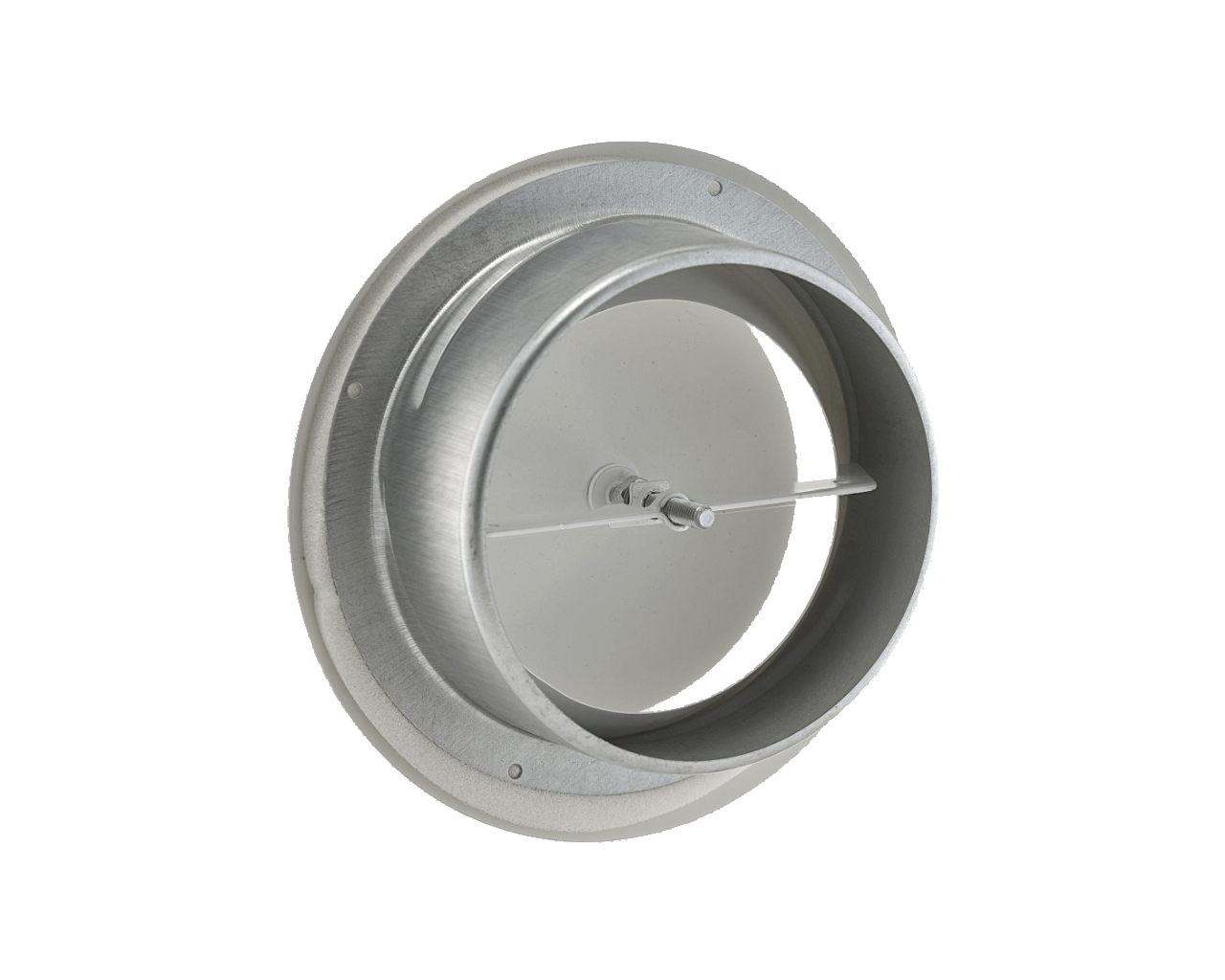

Construction

The valve is manufactured from powder coated steel sheet. The powder coating gives a high surface finish and good impact and scratch resistance. The valve has an optimum sealing through the combination of a fixing collar with bayonet type closure and sealing tape. The control disc, with screw spindle, enables easy regulation and positional locking.

Standard color white (RAL 9010). Other colors available on request with a minimum order quantity and different delivery times.

Eiginleikar

Nafn eiginleika	Gildi eiginleika
Tegund	Innblástursventill
Gerð	DVS-P
Þvermál	200 mm
