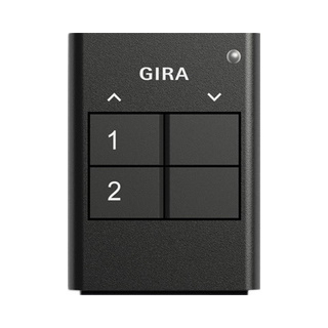

KNX RF 2f. Fjarstýring

RF hand-held transmitters for KNX make the controller "mobile": From
any point in the house, the required KNX function can be triggered
conveniently by "remote control". The RF hand-held transmitters for
KNX transmit KNX telegrams wirelessly when the button is pressed, depending on
the parameter setting when the application program is loaded. These could
include telegrams for switching/pressing, dimming, or blind control. It is
also possible to program encoder functions (dimming encoders and scene
auxiliary units).

Features:
- Confirmation function as well as transmit and status display via two-colour LED (red/green) separately for each button by 2-stage display function.
- Optional status display by separate 1-bit status communication objects.
- Transmit and confirmation display deactivatable.
- Project planning, start-up and parameter setting are performed using ETS (version 5 or later).
- Battery-operated device.

"Switching" function
- Rocker or button function.
- Command for pressing and releasing can be parameterised (ON, OFF, CHANGE, no reaction).

"Dimming" function
- Rocker function.
- Command when the rocker is pressed (right and left button) can be set in the parameters (lighter - ON, darker - OFF).

"Blind" function
- Rocker function.
- Command when the rocker is pressed (right and left button) can be set in the parameters (ON, OFF, CHANGE).
- Time between short and long-term command can be set in the parameters.

"Value transmitter" and "Scene auxiliary unit" functions
- Rocker function.
- Command when the rocker is pressed (right and left button) can be set in the parameters (values 0 to 255, 0 to 100% or scene number).
- With scene auxiliary unit: Memory function possible.

Technical data:
KNX medium: RF1.R
Start-up mode: S mode
Rated voltage: DC 3 V
Batteries: 1 x CR 2450N
Ambient temperature: -5 °C to +45 °C
Wireless frequency: 868.3 MHz
Transmission power: max. 20 mW
Range (free field): approx. 100 m
Battery
- Type: CR 2450N
- UN no.: 3091

Notes:
- Batteries are consumables and must be replaced regularly. Please observe the regulations on the disposal of used batteries.
