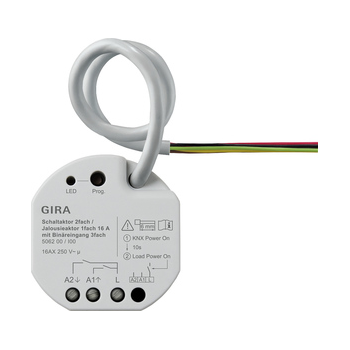

KNX (One) Rofa- og gluggatjaldaliði 2f. 16A

Rofa- og gluggatjaldaliði innfeldur

Tvöfaldur 16A

KNX (One)

Features:

Function in the Gira One system
- Actuator for switching devices or for controlling blinds, shutters, awnings,
skylight operation.
- In blind operation, the adjacent outputs (A1/A2) are combined into one blind
output.
- 3 binary inputs for connection to conventional switches, buttons and motion
detectors with zero-voltage contacts.
- Connection to an external temperature sensor at input 3.
- The inputs are used to control Gira One actuators or to record status
information.
- Programming and start-up with the Gira Project Assistant (GPA), from
version 5.0.
- Encrypted data transfer between the Gira One devices.

Shading and ventilation functions
- Control of slat blinds, shutters, awnings, skylights or roof domes.
- Movement times optionally adjustable.
- Sun protection function with curtain or slat positions at the beginning or
end of the function that can be set for each output.
- Setting of the delay time at the beginning or end of the sunshine.
- Fabric stretching for awnings.
- In the event of an active wind alarm, e.g. with a conventional weather
station with zero-voltage relay outputs for the wind alarm, the blinds raise
and are automatically locked. The status of the binary input is monitored on a
cyclical basis.
- In the event of an active rain alarm, e.g. with a conventional weather
station with zero-voltage relay outputs for the rain alarm, the skylights or
roof domes close immediately and are automatically locked. The status of the
binary input is monitored on a cyclical basis.
- In the event of an active frost alarm, e.g. with a conventional weather
station with zero-voltage relay outputs for the frost alarm, the active
movements of shutters are stopped and locked to protect the shutter motor. The
status of the binary input is monitored on a cyclical basis.
- Door contact query and visualisation in the Smart Home App: An open door
results in the raising and locking of the blind or shutter.

Technical data:
Rated voltage: DC 21 to 32 V SELV
Switching capacity: AC 250 V, 16 AX
Maximum switch-on current: 800 A (200 µs), 165 A (20 ms)
Gira One Medium: Twisted pair (TP),YCYM 2 x 2 x 0.8
Test voltage: 4 kV (KNX/EIB bus line)
Connections
- Gira One Bus: Connection terminals to control line
- Inputs: Connection terminals to control line
- Load: Screw terminals
Connection cross section: Max. 4 mm²
Inputs
- Quantity: 3
Input type: Zero-voltage
Sampling voltage
- Auxiliary inputs: Approx. 5 V
Total length
- Auxiliary input cable: Max. 10 m
Connected load
- Ohmic load: 2500 W
- Capacitive load: 16 A, max. 140 µF
- Motors (blind or fan): 1380 W
- Light bulbs: 2300 W
- HV halogen lamps: 2300 W
- Fluorescent lamps, parallel-compensated: 1160 VA
- HV LED lamps: typically 400 W
- Wound electronic transformer: 1200 VA
- Tronic transformer: 1500 W
- Fluorescent lamps, uncompensated: 1000 VA
- Fluorescent lamps,lead-lag circuit: 2300 VA
Ambient temperature: -5 °C to +45 °C

Notes:
- Power reduction
Reduction of switching current per device (based on Σ 16 A) per 5 °C in
excess of 35 °C -10%
For installation in
Wood or drywall -15%
Multiple combinations -20%.
- Can be updated via the Gira Project Assistant (GPA)
