Iðnaðar sviss Gigabit 8p

Gigabit iðnaðar netskiptir
8 porta 10/100/1000 Mbps
Gerð: Digitus Industrial
Fæðing: 12-56V DC


Industrial Gigabit Ethernet Switch 8-port, DIN rail, extended temp. range

- Industrial 8-Port Gigabit Switch
- 8 x 10/100/1000Base-TX Ethernet Ports
- Extended operating temperature range, -40 °C ~ +85 °C

The DIGITUS® Industrial Gigabit Switch is designed for harsh environments, where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -40°C to 85°C, the Industrial Gigabit Switch can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Gigabit Switch to be quickly integrated into the respective environment. With its Gigabit connectivity the Industrial Gigabit Switch is a flexible, cost-effective solution for the industrial environment.

Technical Details

- 8 x 10/100/1000Base-TX Ethernet Ports
- Automatic cable detection - Auto MDI / MDI-X function
- Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab Gigabit Ethernet
- IEEE802.3x Flow Control und Back Pressure
- Store and forward technology for optimized data transfer
- Automatic speed and half/full duplex recognition/adjustment
- Backplane with 16Gbps
- Supports up to 8K MAC addresses
- Compact, robust metal housing
- Excellent short circuit protection
- Lightning and overvoltage protection
- DIN rail (top hat rail) and wall mounting possible

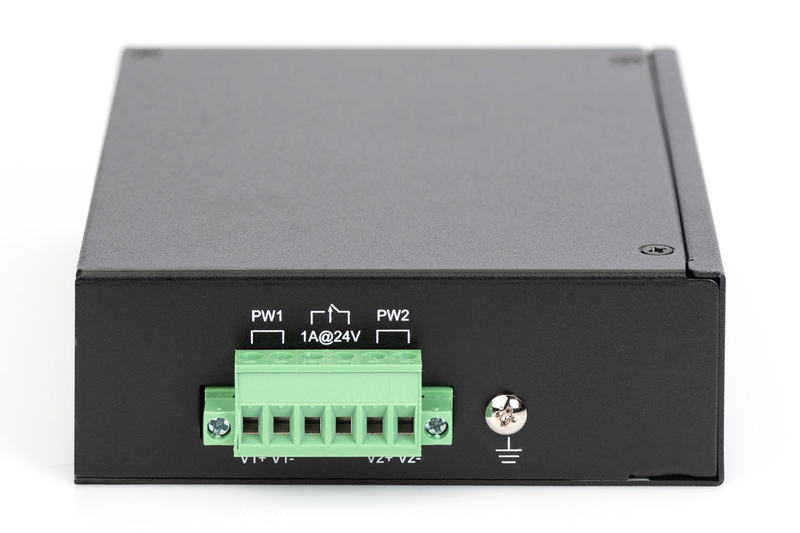

- Redundant power supply: 12~56 V DC, redundant power supply with reverse polarity protection function
- Extended operating temperature range, -40 °C ~ +85 °C
- Removable terminal connection
- Power consumption: 5 W
- MTBF: 500,000 hrs.
- EN 50155 (EN 60068-2-6) Vibration
- EN 50155 (EN 60068-2-27) Shock
- EN 50155 (EN 60068-2-32) Free Fall
- Ethernet speed: Gigabit
- Industrial usage: true
- Number of ports: 8
- Installation type: DIN rail, Wall

Package content

- Industrial 8-Port Gigabit Switch
- Quick start guide
