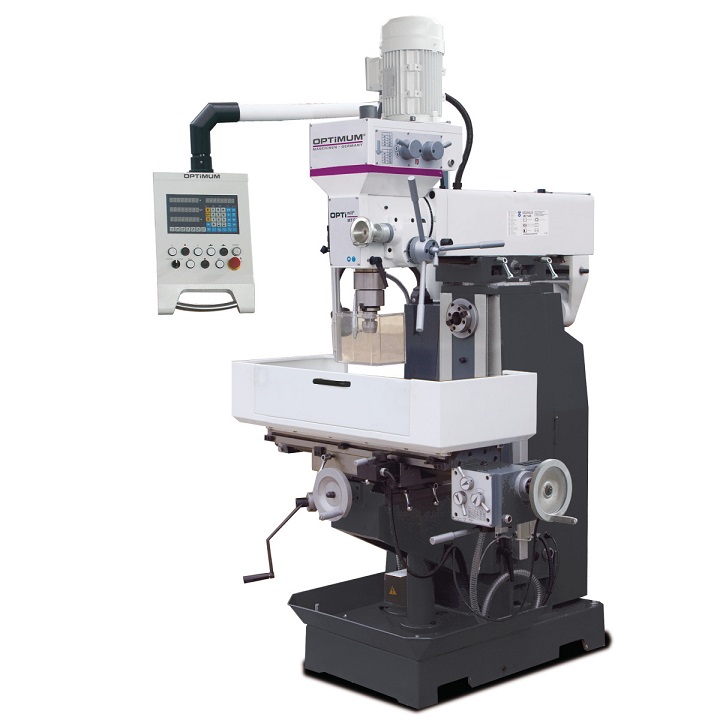

Fræsivél OPTImill MT50

FRÆSITÖNN TCT 3 mm í RA17DTækniupplýsingar:

Afl: 850/1500W/400V
Snúningshraði: 95-3200sn/mín
Borgeta í stál(S235JR): 32mm
Mesta þvermál fræs: 28mm
Spindilfærsla: 120mm
Spindill: MK4
Kverk: 275mm
Borð: 800x240mm
Burðargeta borðs: 80kg
Stærð: 1100 x 850 x 1150mm
Nettóþyngd: 320kg
Heavy, solid design made of high-quality Meehanite cast iron
Drilling frictional head inclinable ± 45 °
High concentricity due to tapered roller bearing, measured smaller than 0.01 mm in the quill
Automatic quill feed
Adjustable drilling depth stop with millimeter scale, front readable
Right / left rotation for thread cutting
X- and Z-axis with adjustable dovetail guide
Coolant system
Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user
Massive and large-dimensioned XY stage, precisely surface-finished with T-slots

Y-axis with flat guide
Large travel Y-axis of 400 mm
Motorized table height adjustment (Z-axis)

Siemens SINAMICS G110M converter
Due to compact design especially EMV contracted
Internal security features
made in EU

OPTI control panel:
Integrated control panel
Integrated digital position indicator DPA 21 with speed display
Mótor: 850/1500W/400V
Kælidæla: 40W
Borgeta í stál (S235JR): 30mm
Fræsihaus hámark: 63mm
Mesta þvermál fræs: 25mm
Snúningshraði: 115 - 1750sn/mín
Snúningshraðastig: 4x 6 þrep
Spindilfærsla: 120mm
Spindill: ISO 40
Kverk: 250 - 650mm
Borð: 1000 x 240mm
Færsla á borði x/y/z: 580/230/400mm
Sjálfvirk færsla x/y: 500/150mm
Vélhalli: ±45°
Borðhalli:±45°
Festiraufar: 14mm
Burðargeta borðs: 150kg
Fjarlægð spindill-borð: 60 - 360mm
Stærð: 1360 x 1150 x 2080mm
Þyngd: 900kg
Heavy, solid design made of high-quality vibration-absorbing gray cast iron
Halogen machine lamp with focused beam
Quill feed via the quill lever or with the fine feed handwheel
Containers for horizontal milling by attaching to the back always handy
Automatic end shutdown of the X-axis
X-axis moves either with the handwheel or via the table feed device
Spindle head carrier can be swiveled to the left and right by 90 °
Oil bath gearbox with ground, hardened gear wheels
Left-right rotation
Coolant system
Exact cross table, large dimensions and precise surface finish
XY stage can be turned 45 ° on both sides
Milling head inclinable ± 45°
