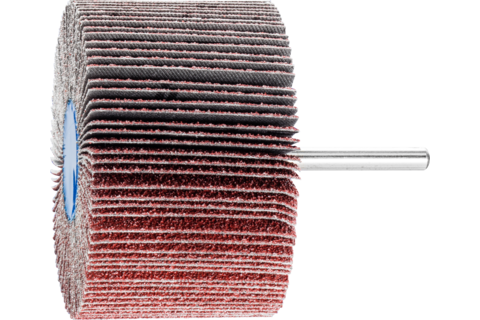

Flipahjól F 80x50mm A40 PFERD

Flipahjól frá PFERD
Þvermál: 80 mm
Þykkt: 50 mm
Grófleiki: A40
Leggur - Lengd: 40 mm
Leggur - Þvermál: 6 mm

Aluminium oxide mounted flap wheel F dia. 80 x 50 mm shank dia. 6 mm A40 for fine grinding & finishing.

On mounted flap wheels, the flaps made of coated abrasive are arranged radially around the tool axis in a fan-type structure. Their flexibility enables them to adapt perfectly to the contours of the workpiece. The abrasive grain is embedded in the sturdy, flexible cloth backing material by means of a resinoid bond.

In ISO 3919, mounted flap wheels are designated as "flap wheels with shaft".

For general applications from coarse to fine grinding.

Materials that can be worked:
Aluminium
Annealed cast iron
Brass
Cast steel
Copper
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Stainless steel (INOX)
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)

Applications:
Deburring
Leveling
Step-by-step fine grinding
Structuring (matt finishing, brush matting and satin finishing)
Surface work
Work on weld seams

Drive types:
Drive spindle
Flexible shaft drive
Straight grinder
