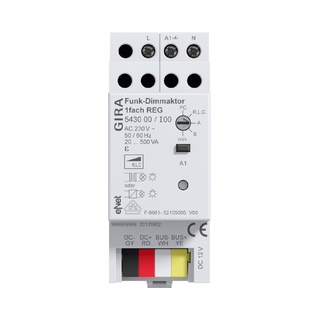

eNet 1f. Dimmaliði 20-500W DIN

eNet Einfaldur Dimmaliði DIN

20-500W

Features:
- The eNet wireless dimming actuator receives telegrams for switching and dimming various electrical loads from the eNet wireless reception module or eNet server via a data cable.
- Switching and dimming light bulbs, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps.
- Bulb-saving switch-on.
- Switch-on and minimum brightness can be saved.
- Scene operation.
- Status display with LED.
- Status feedback to eNet wireless sensors.
- Short-circuit and excess-temperature protection.
- Automatic or manual setting of dimming process.

Can be set with eNet server:
- Maximum brightness.
- Dimming process.
- Dimming speed.
- Delay time.
- Switch-on/off delay.
- Dimming ramp up/down.
- Switch-off pre-warning.
- Permanent-on, permanent-off.
- Hotel function.
- Light control.

Technical data:
Rated voltage: AC 230 V, 50/60 Hz
Power loss: max. 4 W
Standby: max. 0.3 W
Ambient temperature: -5 °C to +45 °C
Connected load
- Light bulbs: 20 to 500 W
- HV halogen lamps: 20 to 500 W
- Wound transformer: 20 to 500 VA
- Wound transformer with NV-LED: 20 to 100 VA
- Tronic transformer: 20 to 500 W
- electronic transformer with NV-LED: typically 20 to 100 W
- LED lamps: typ. 3 to 100 W
- Compact fluorescent lamp: typ. 3 to 100 W
Connections: max. 4 mm²
Length of the data cable: Max. 3 m

Notes:
- An eNet wireless reception module or an eNet server is required to operate this DIN-rail mounting device.
- Wireless approval is valid for EU and EFTA countries.
