EIB Gardínuliði 4f. 12-48V DC

Gardínuliði 4f.

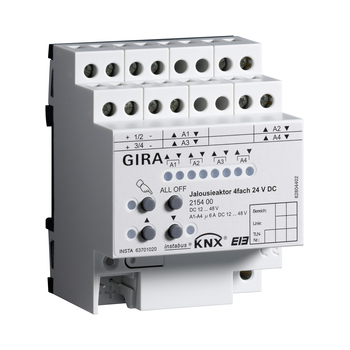

Blind actuators with integrated bus coupler, manual activation, and status
display for each output. For controlling electrically operated blinds,
shutters, awnings, ventilation flaps, or similar hangings.

Features:
- Curtain position can be directly controlled.
- Slat position can be directly controlled.
- Behaviour after bus voltage failure and recovery can be set.
- Separately parameterizable movement times with movement time extension for
moving into the upper end position.
- Central control of all blind outputs possible.
- Feedback on the curtain or slat position.
- Feedback can be delayed until after the recovery of bus voltage.
- Assignments of up to five different safety functions (three wind alarms, one
rain alarm, one frost alarm) or optionally with cyclical monitoring.
- Forced setting function can be realised for each blind output.
- Integration in scenes is possible, 8 internal scenes at the most can be
parameterised per channel.
- Memory function for light scenes.
- Solar protection function with fixed and variable curtain or slat positions
can be activated.
- Extended sun protection with extensive control functions.
- Integration in temperature management of building possible.
- Blocking of individual outputs manually or with bus.
- Active or passive (object can be read out) cyclical feedback functions.
- Building site operation: Outputs can be operated manually without bus
voltage with operating voltage only.
- For low voltage DC 12 to 48 V.
- Independent control of the four blind outputs.

Technical data:
KNX medium: TP256
Connections
- KNX: Connection and junction terminal
- Load: Screw terminals
Rated voltage: DC 12 to 48 V
Switching voltage DC: DC 12 to 48 V
Switching capacity
- DC 12/24 V: 6 A
- DC 48 V: 3 A
Connection cross section: Max. 4 mm²

Notes:
- Installation on DIN top-hat rail.

Scope of supply:
- Connection and junction terminal for KNX included in the scope of supply.

Dimensions:
Modular width (MW): 4
