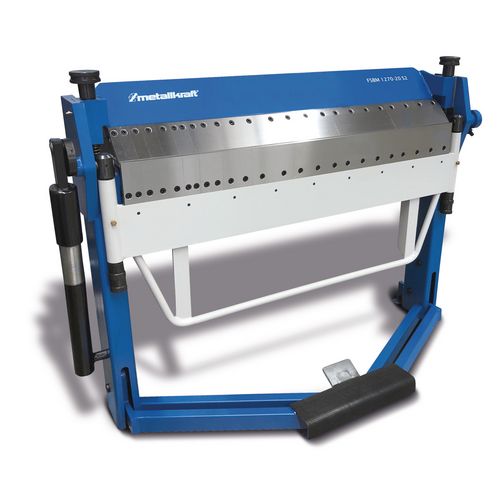

Beygjuvél FSBM 1270-20 HS2

BeygjuklossiThe workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
Different tool variants available E, S2, HS2 and HSG
The powerful auxiliary cylinder facilitates bending
Next passage between top and bottom cheek of up to 25 mm
Self-lubricating plain bearings
Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
Adjustment of material thickness by means of knurled screw
Adjustable stop for bending angle

Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
Bending capacity VA: factor 0.75
Bending capacity aluminum: factor 1.2
Hardened top tools are required to bend VA
The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
Different tool variants available E, S2, HS2 and HSG
The powerful auxiliary cylinder facilitates bending
Next passage between top and bottom cheek of up to 25 mm
Self-lubricating plain bearings
Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
Adjustment of material thickness by means of knurled screw
Adjustable stop for bending angle

Note on technical data:
Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
Bending capacity VA: factor 0.75
Bending capacity aluminum: factor 1.2
Hardened top tools are required to bend VA
