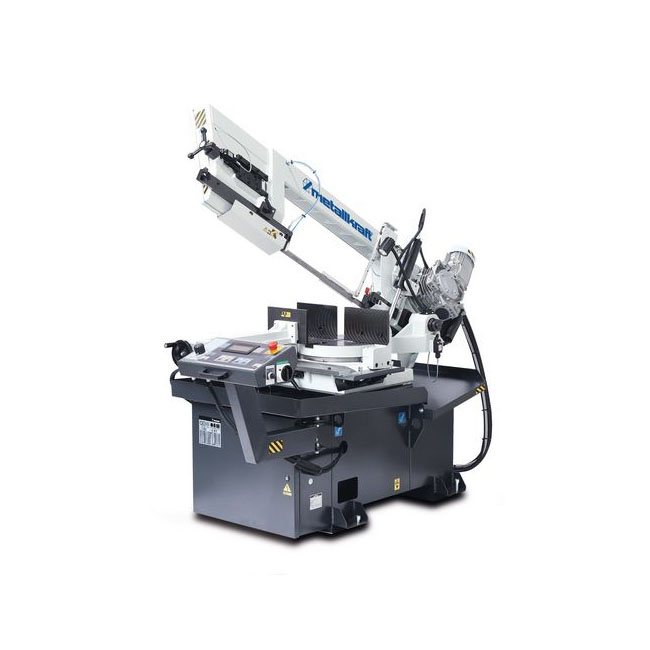

Bandsög 300x320 HA-DG

Bandslípivél MBSM 75-200-1For sawing e.g. stainless steel, tool steel, hollow profiles and solid materials

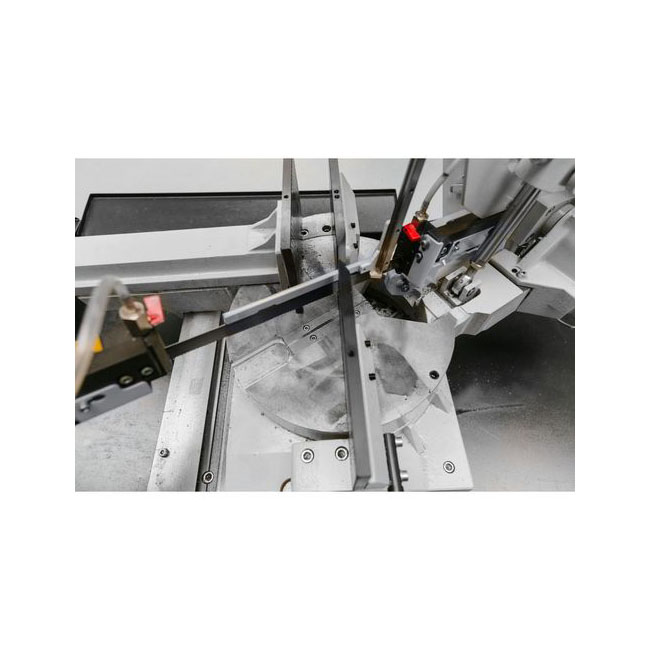

Precise and robust tape guides with adjustable HM plates
Monitoring of saw blade tension electromechanically via microswitch
With cooling system on the saw band guides
With chip removal brush for optimum cleaning and maintenance of the saw blade

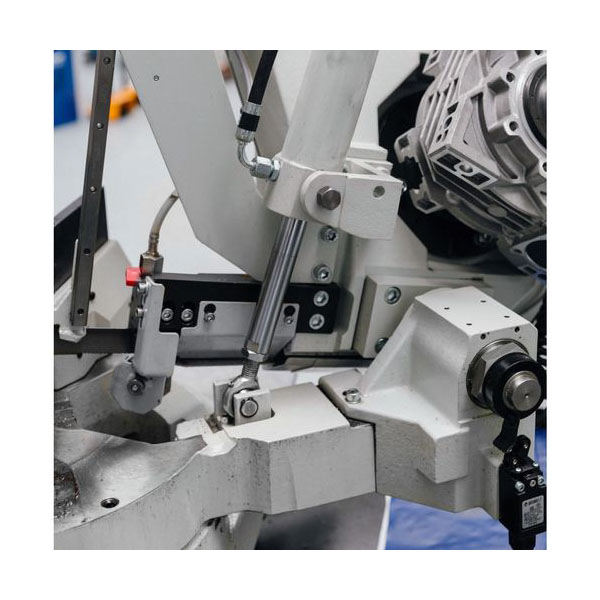

When lifting the saw arm, the lowering cylinder locks automatically in the upper position - an additional shut-off on the cylinder is not required
Saw arm tilted by 25°, thus longer blade life
After the cutting process, the saw blade stops automatically
Lowering the saw arm by own weight or manually (H-DG)
For sawing e.g. stainless steel, tool steel, hollow profiles and solid materials
With fully hydraulic controlled sawing functions
Saw blade drive with low-maintenance, oil-lubricated worm gear
With robust three-phase motor
Motor equipped with overload protection
Ball-bearing turntable
After starting the cutting cycle, the vice clamps automatically - after completion of the process it goes back to the starting position (HA-DG)
Saw arm tilted by 25 °, thus longer blade life
Swiveling saw arm from + 60 ° to -45 °
With chip removal brush for optimal cleaning and maintenance of the saw blade
With frequency converter: allows stepless adjustment of saw blade speed from 20 - 100 m / min.
BRP saw blade monitoring
Hydraulic vice with manual quick release for lateral adjustment
Limit switches control the upper and lower position of the saw arm
No adjustment of the upper end point necessary
