Upplýsingar um vöru

Vörunúmer: 3500-132-200-C1-EC

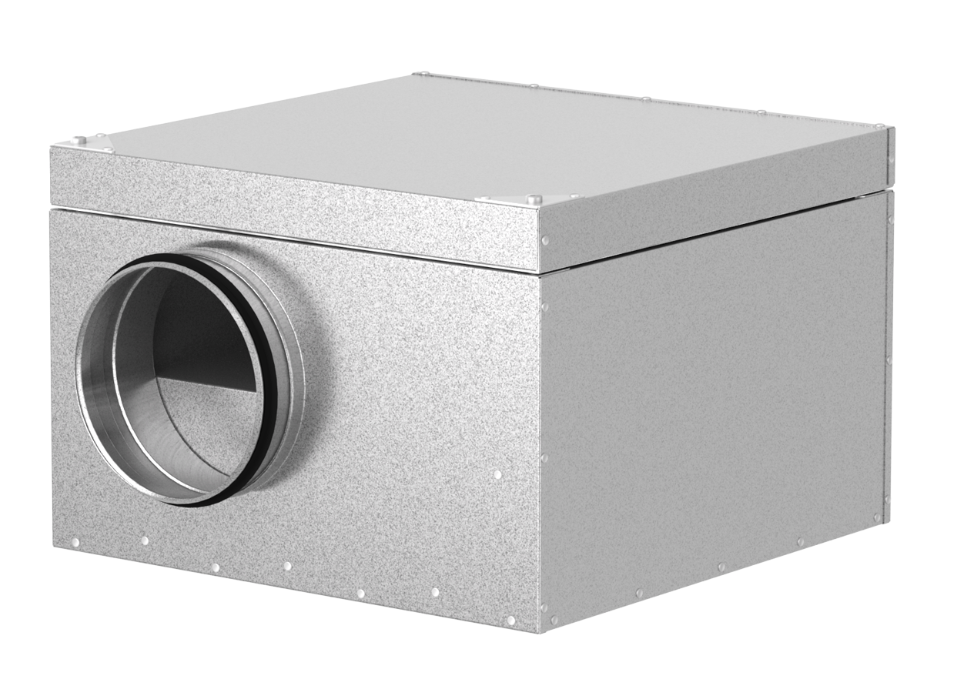

Stokkablásari Einangraður frá Östberg
Gerð: IRB 200 C1 EC-y3

- Insulated duct fan.

- Equipped with 50 mm of thermal and acoustic insulation makes it ideal for handling cold air.

- Designed for high pressure and long, complicated duct runs.

- The design prioritise functionality, durability and longevity.

- Impeller with backward curved blades.

- The external rotor motor has maintenance-free sealed ball-bearings and is very energy efficient.

- Speed controlling can be done with the built-in potentiometer, 0-10 V alt. external control.

- Integrated motor protection.

- Junction box has enclosure class IP 54.

- The housing is manufactured from galvanized sheet steel.

- The fan is intended to be installed in a duct system.

- A duct connected fan can be installed outside or in damp environments.


Eiginleikar
Nafn eiginleika Gildi eiginleika
Tegund Stokkablásari
Gerð IRB 200 C1 EC
Undirgerð Einangraður
Málspenna 230 V
Málstraumur 1,2 A
Málafl 149 W
Þyngd 17,3 Kg
Tíðnir 50 - 60 Hz
Hljóðstyrkur 43 db(A)
Hámarksflæði @ 0Pa 268 l/s
Hámarksþrýstingur 641 Pa
