Upplýsingar um vöru

Vörunúmer: 3500-280-8010904

Loftkælir frá Östberg
Gerð. HERU 200/300 S/T IQC

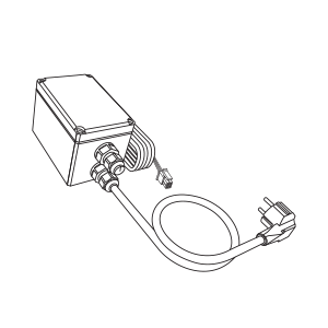

Water cooling IQC is an expansion unit for the control system in HERU Next Generation with the software IQC v1.08 or later. With the expansion unit the HERU air handling unit can regulate a valve actuator and an AC- or EC pump regulating cooling water flow to an external cooling battery depending on cooling demand.
Water cooling IQC is powered via a separate connection to a power outlet.

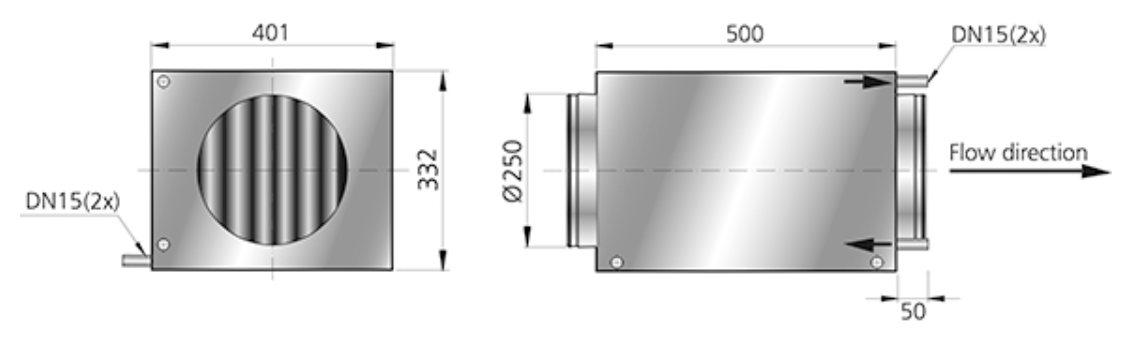

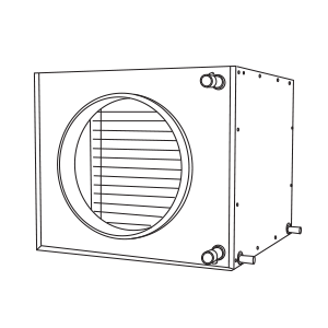

Whenever the indoor temperature exceeds the current set value of the air handling unit and passive cooling is insufficient the valve actuator is activated and the pump is started in order to run cooling water through an auxiliary cooling battery in the supply air duct.


Eiginleikar
Nafn eiginleika Gildi eiginleika
Tegund Loftkælir
Gerð HERU 200/300 S/T IQC
Málafl 2500 W

Östberg Innbásturssamstæða SAU 125 C1 EC-y1

Innblástursssamstæða frá Östberg
Gerð: SAU 125 C1 EC-y1


Vörunúmer: 3570-103-125-A
