Upplýsingar um vöru

Vörunúmer: 3500-200-300-A

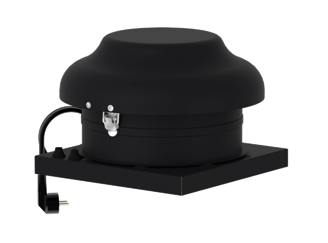

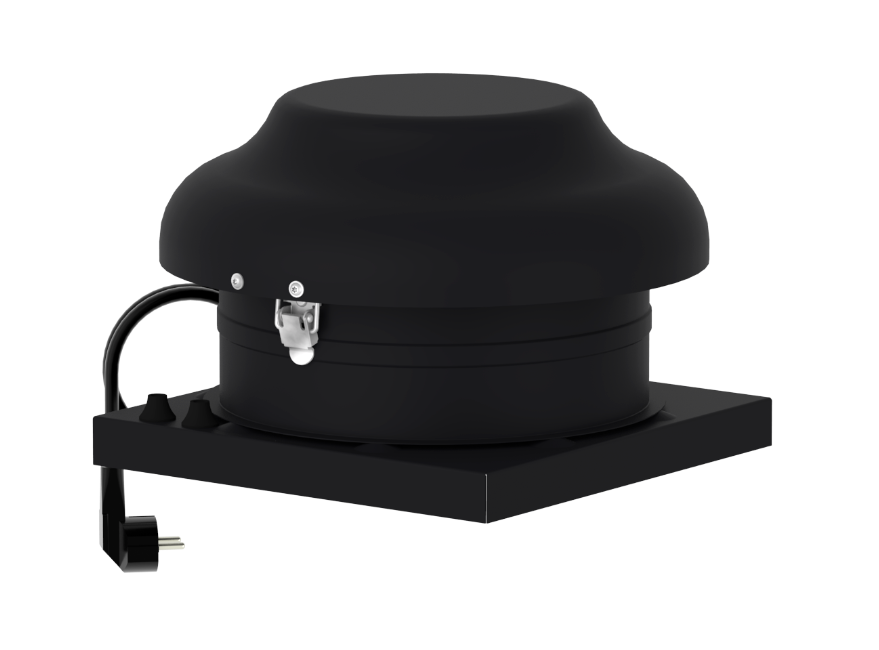

Þakblásari frá Östberg
Gerð: TKS 300 A1

Roof fan with square connection.

Horizontal outlet.

High performance and proven reliability.

Operational in both 50 and 60 Hz.

Impeller with backward curved blades.

The external rotor motor has maintenance-free sealed ball-bearings.

Integrated motor protection.

Junction box has enclosure class IP 54.

For speed control a transformer or electronic speed controller can be connected.

Fan housing is manufactured from galvanized sheet steel which is polyester plastic coated in black as standard.

Swing-up design to simplify maintenance and cleaning of the impeller.

The easiest way to mount the roof fan is with a roof curb, TFU to TKS.

The fan complies with environmental requirement M2.

To comply with the ErP 2018 regulation, a local demand controller must be used.


Eiginleikar
Nafn eiginleika Gildi eiginleika
Tegund Þakblásari
Gerð TKS 300 A1
Málspenna 230 V
Málstraumur 0,19 A
Málafl 47 W
Þyngd 4,3 Kg
Tíðnir 50 - 60 Hz
Hljóðstyrkur 49 db(A)
Hámarksflæði @ 0Pa 68 l/s
Hámarksþrýstingur 291 Pa

Innansexkantbolti 4 X 20mm

Yfirborð: Svart
Stærð: M4 X 20 mm
Styrkur: 010.9/10.9
DIN 7991
Vörunúmer: IB07400040020
Engar birgðir skráðar
