Upplýsingar um vöru

Vörunúmer: 1SCA022401R0170

OTP36T3M

Öryggisrofi í húsi 45A 3p.

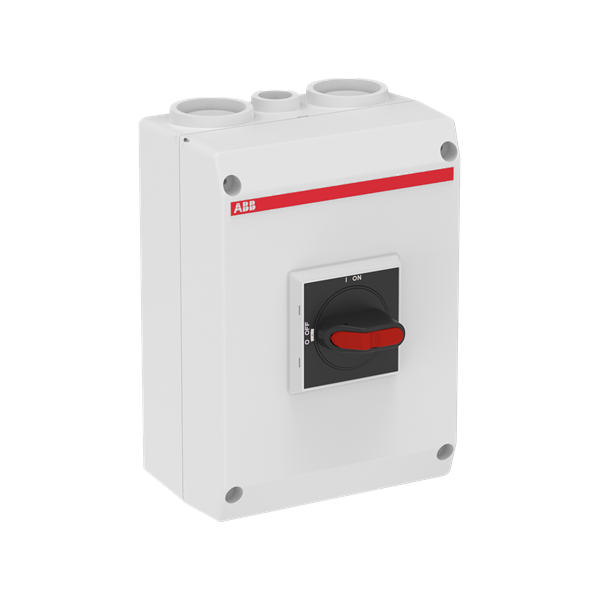

Safety switch, 3-p. 415V AC23 45A, 22kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.


Eiginleikar
Nafn eiginleika Gildi eiginleika
Tegund Öryggisrofi
Kennilína OT
Gerð OTP36T3M
Hæð 200 mm
Breidd 145 mm
Dýpt 90 mm
Málstraumur 45 A
